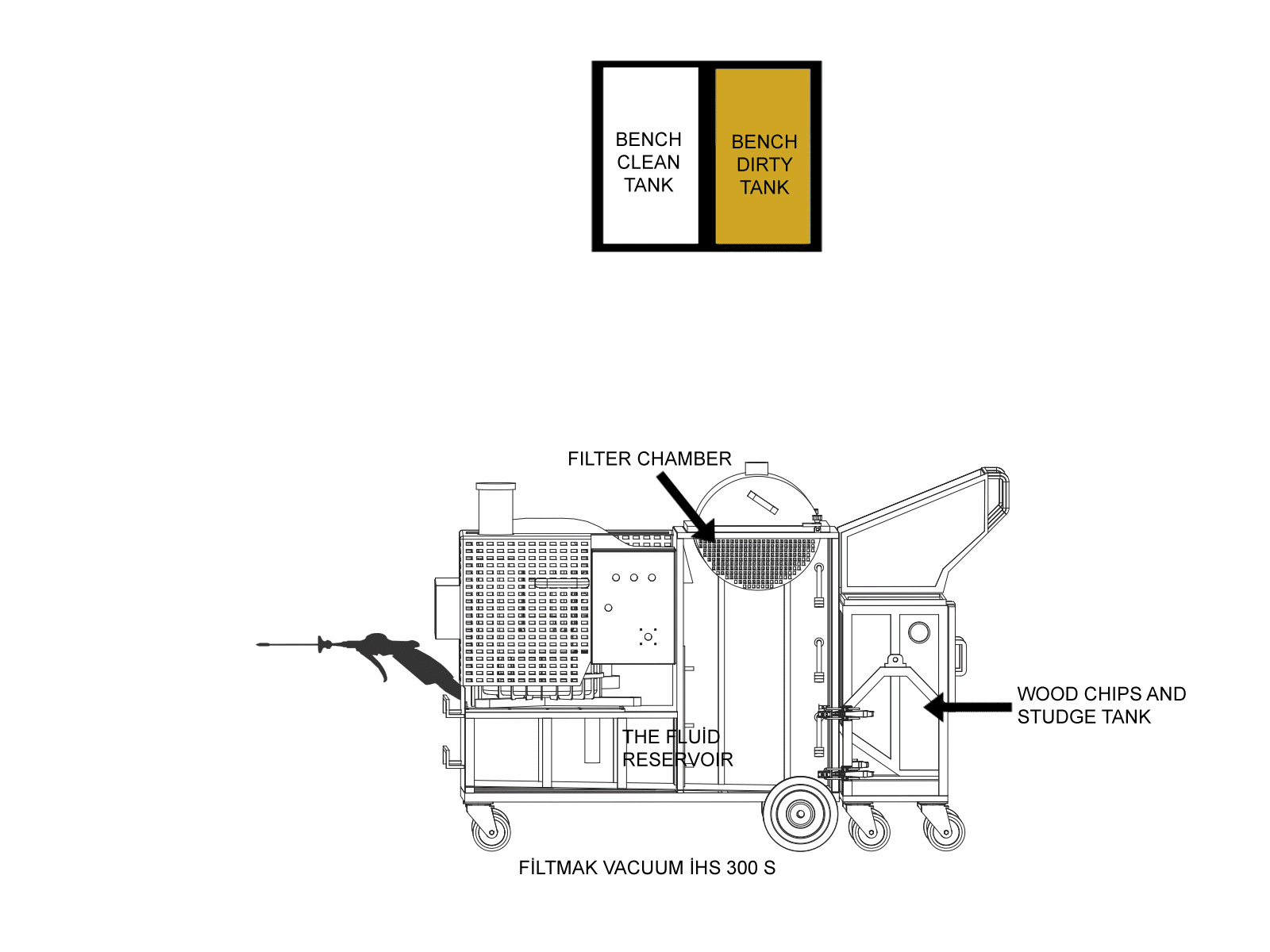

FİLTMAK VAKUM  İ.H.S 300 S

CNC MAHCINE CLEANING DEVICE

Title: Discharge of emulsion tank, filtration of fluid, cleaning of dirt inside and around the tank, cleaning of mud, fungi and turnings. The interference of scale and particles into the emulsion tank with the boron oil, which is used during the processing of metals, can not be prevented.

The metal dusts mixed into the fluid, through the external oils over the fluid, stick to each other and make weight, and creates accumulation on the stillest region at the bottom of emulsion tank. This formation affects the conductivity of fluid, and makes it deformed and spoiled, thus it requires the renewal and cleaning of the tank.The turning lathe is stopped, the motors are removed, the fluid tank is taken out and it is required to be cleaned; this process causes loss of labor, and as the maintenance of emulsion is not performed it makes the emulsion wasted.

With Filtmak Vacuum Device: It extracts the emulsion, which has become mud-like within the tank and which contains the metal particles, and makes it filtered; when it is required, without stopping the turning lathe and removing the tank, through the high suction power. It takes in the filtered emulsion to its own tank; it washes the turning lathe with the emulsion, which is separated from the metal dusts, through its high pressure pump, and after finishing the tank cleaning; it gives the cleaned emulsion back to the turning lathe.

It prevents the loss of time of the plant by performing this procedure in the shortest time.

Through the periodically performed tank cleaning; the spoilage and wastage of the emulsion is prevented.

TECHNICAL ADVANTAGES

• Mobile device. In this way, many bench can make cleaning and maintenance, respectively.
• The installation is very simple and quick.
• Tank capacity is 300 liters.
• Optional Blower 220 VOLT-3 KW or 380 Trafeze - 5.5 KW.
• Suction hose Ø 50 mm.
• absorbent capacity higher than 200 liters per minute, and
• has the power to refer back to 200 liters per minute.
• Cleanable through 50 micron filter pollution is trapped behind the counter.
• Filtering: Bag filter is 5 micron level.
• With pressure pump liquid discharge liquid / emulsion shall be returned to the counter.
• Filters are not consumable. Cleaned and re-used.
• The unit can be operated automatically or manually on demand.
• Automatic operation: The tank in the engine due to the level switches are provided to stop working.
• Dimensions: 800 mmx1900 mmx1300 mm.
• Maintenance-free.
• Delivering a low investment cost compared to the efficiency and savings.

•
